A peristaltic pump or tubing pump is a self-priming pump that achieves pumping action by moving a system of rollers against a flexible tube. The fluids being pumped (e.g., chemical feeds) are never exposed to the outside atmosphere or the mechanical moving parts of the pump as they are contained within the tubing. The roller design prevents siphoning by providing a constant seal on the pumping tube.

One common issue with any peristaltic metering pump is the need to replace the tube on a regular basis – a key part of regular periodic maintenance schedule. The constant rolling motion within the head will wear out the tubing which could lead to a failure/leak if not monitored.

Stenner has the answer with a head designed for fast and easy tube replacement. Stenner uses latches instead of screws in the pump head eliminating the need for tools. The latches provide quick and easy access to the tubing unit within the head. The single-piece tube construction and the QuickPro pump head make all the difference, saving you time and money, and giving you peace of mind that your system will operate safely and efficiently.

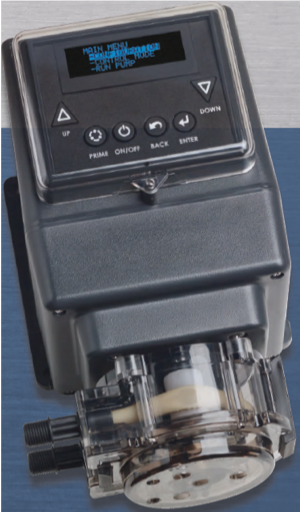

With all of this in mind, Stenner Pumps has upgraded their pump portfolio and released the “S” Series pump!

SMART TECHNOLOGY – SIMPLE PROGRAMMING – SOLID CONSTRUCTION

The S Series: Interfaces with process control systems utilizing a 4-20mA output signal and 3-relays outputs. Built to NEMA 4X for demanding applications. Select from multiple performance indicators and operational modes with OLED display for easy navigation. Fine-tune the pump to fit the application; monitor the pump for peace of mind. Prevent unauthorized access to programmed settings with password protection.

Smart Technology:

• Leak Detection
• Tube Timer
• Backup Pump
• Simple Programming
• Digital, Analog Signal, Pulse, Hall Effect Inputs
• Does not lose Prime or Vapor Lock

Solid Construction:

• Brushless DC motor for durable & quiet operation
• Totally Enclosed Pump protects the motor
• OLED operating display
• Pump head offers tube replacement without tools
• Pump head with splined shaft for a faster roller assembly
• NEMA 4X, NSF 61 & 372, CE IP65, & NSF 50 available

Maximum: Flow: 150 GPD – Pressure: 100 PSI – Suction Lift: 25ft

For more information on the new S Series from Stenner Pump, contact your local RHFS Office or the Tech Support Team @ techsupport@rhfs.com
